AS1163-C350/C350LO structure Square Hollow Section and Circle Hollow Section

Short Description:

AS1163-C350LO NZS1163-C350LO Steel Hollow Section


Product Detail

Product Tags

Simple Description:

Standard: AS/NZS 1163

Grade: C250/C250LO, C350/C350LO, C450/C450LO

Size: 20×20-600x600mm

Thickness: 2-30mm

Certificate: CE, FPC, Mill Certificate.

Chemical Composition:

Grade C Si Mn P S Ni
Q235C 0.18 0.30 0.35-0.8 ≤0.035 0.040 /
Q345C ≤0.20 ≤0.50 ≤1.70 ≤0.035 ≤0.030 ≤0.50
Q460C 0.20 0.55 1.80 0.030 0.030 0.80
AS1163-C250 0.12 0.05 ≤0.5 0.040 0.030 0.25
AS1163-C350 0.20 0.05 1.60 0.040 0.030 0.39
AS1163-C450 0.20 0.45 1.60 0.040 0.030 0.39

Mechanical Properties:

Grade Yeild Strength    min Mpa Tensile Strength Elongation Impact Test
Mpa Mpa Circle tube Square Tube Impact/J
Q235C 235 375-500 ≥20 0 27
Q345C 345 470-630 22 0 34
Q460C 460 550-720 18 0 27
AS1163-C250 250 320 22 18 0 27
AS1163-C350 350 430 20 16 0 27
AS1163-C450 450 500 16 14 0 27

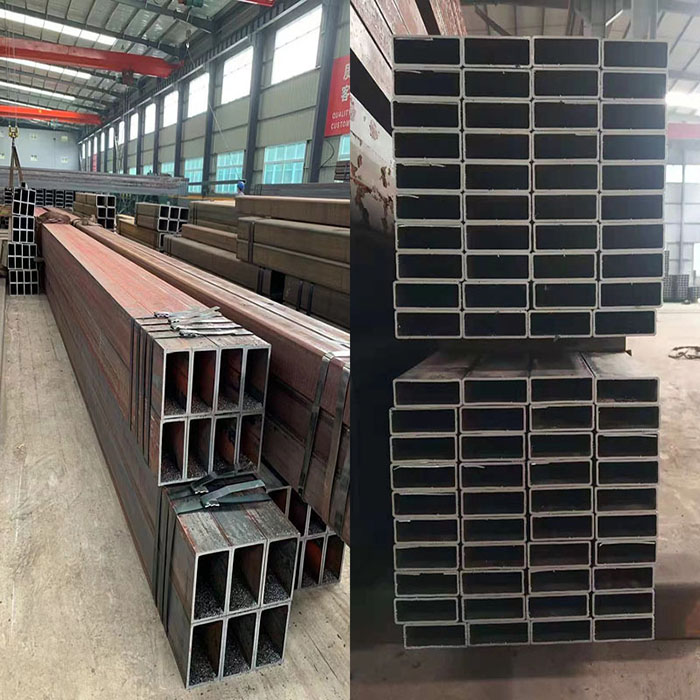

Production Show:

4

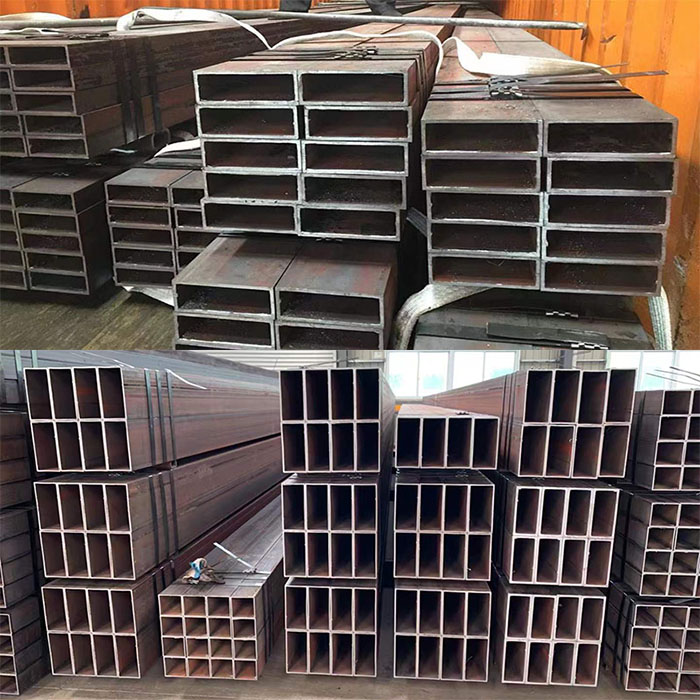

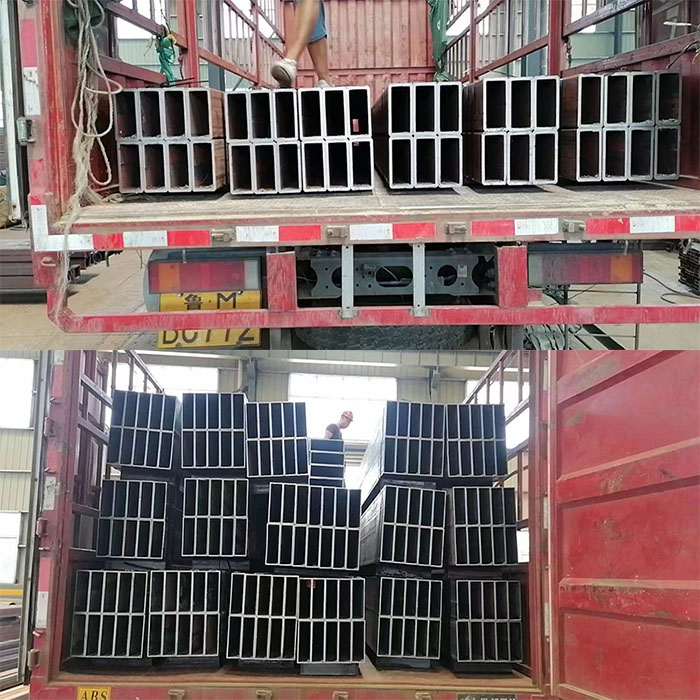

Delivery and Container Loading:

11 12

Application:

AS1163/NZS1163 C350/C350LO is mainly used in Construction, Machinery Manufacturing, Steel Construction, Shipbuilding, Solar Power Supports, Steel Structure Engineering, Power Engineering, Power Plants, Agricultural and Chemical Machinery, Glass Curtain Walls, Automobile Chassis, Airports, Boiler Manufacturing, High Speed Railings, Housing Construction, Pressure Vessels, Petroleum Storage Tanks, bridges, power station equipment, crane transport machinery and other high-load welded structural parts, etc.

This grade is popular in Australia and New Zealand. Main grage contains C250, C350, C450. The Similar Grade in China is Q235C, Q345C and Q460C.

By the way, we can offer ASTM, GB, EN10210, JISG standard steel hollow section. Please feel free to contact us if you have request on it.

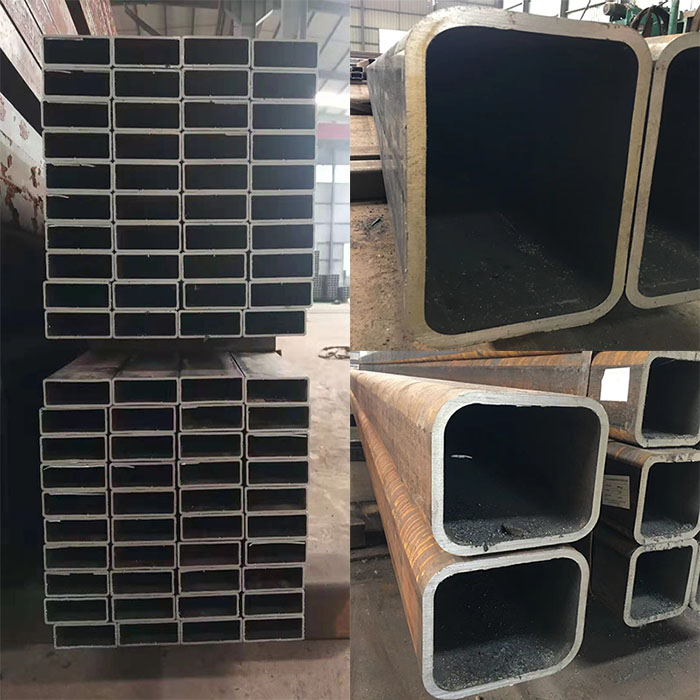

Sharp Corner Square Hollow Section:

1 2

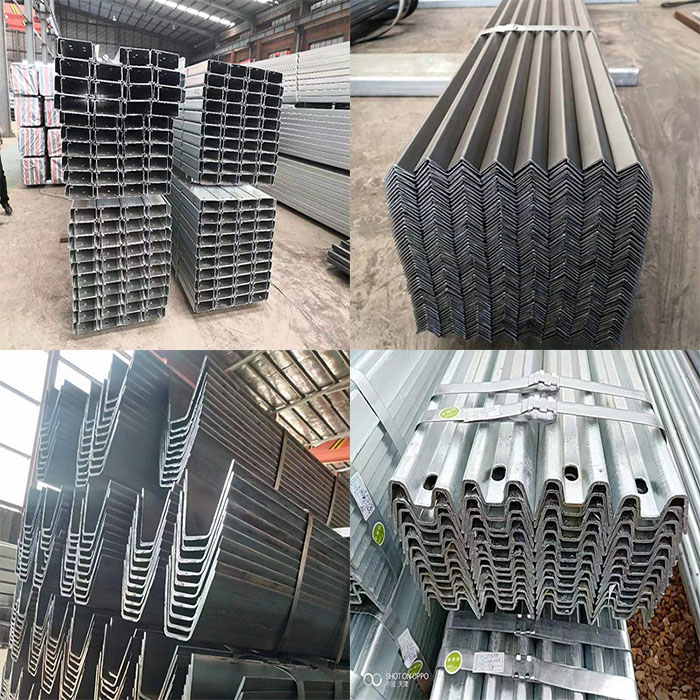

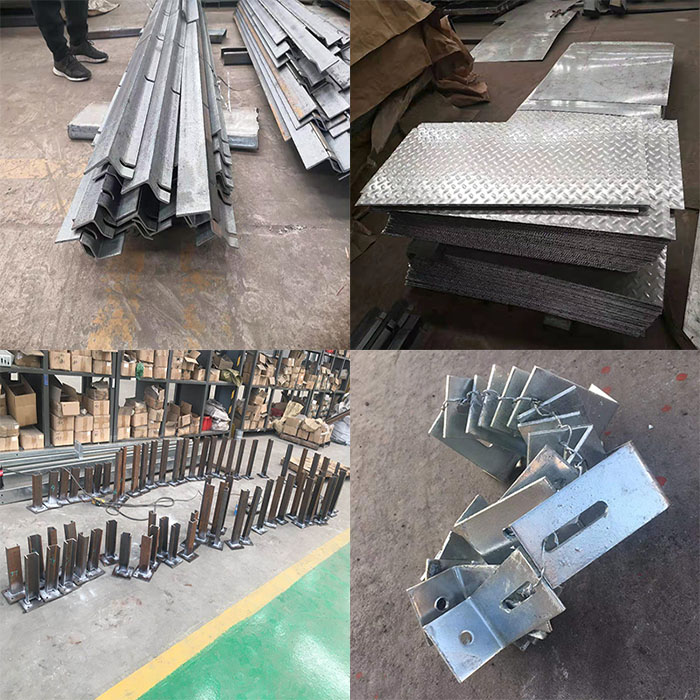

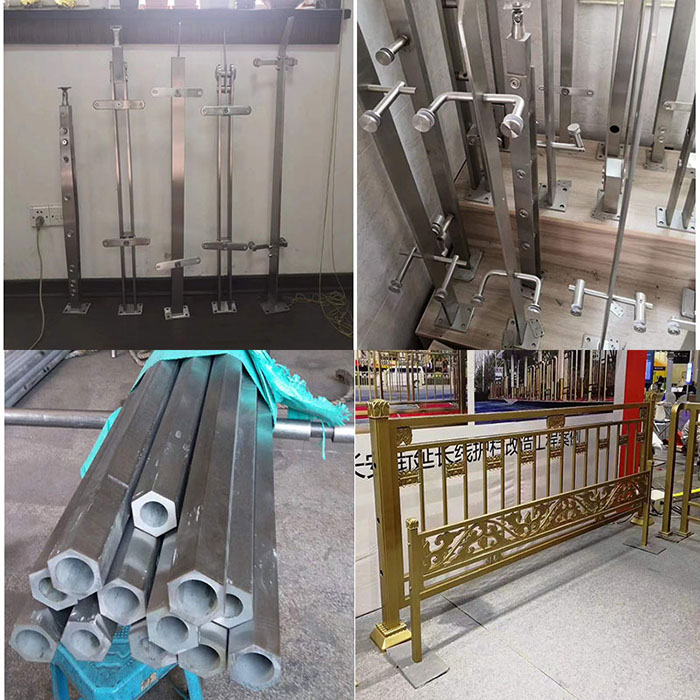

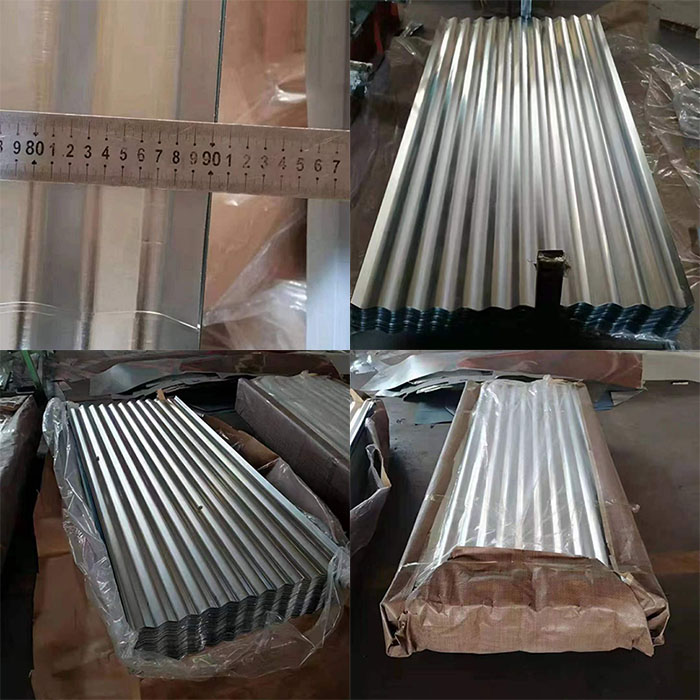

Related Product we can offer:

1 2 2 未标题-1 未标题-2 未标题-1
