NM400 /NM 450 wear resistance steel plate

Short Description:

NM 300, NM360, NM 400, NM 450, NM 500, NM550,NM600 wear resistance steel plate GB/T 24186-2009


Product Detail

Product Tags

Production Description:
Standard:GB/T 24186-2009
Grade:NM 300, NM360, NM 400, NM 450, NM 500, NM550,NM600
Deliver condition:Quencing and tempering
Size Range:Thickness 4MM-800MM , width and length can be as requested
Tolerance:As GB/T 24186-2009
Length:As request
MTC:EN 10204/3.1

NM450 is a high strength wear plate.
Naming: N is for resistance (nai), M is the first pinyin letter of the two Chinese characters for grinding (mo),

and 450 represents the average Brinell hardness of this steel plate

Heat treatment: high temperature tempering, quenching + tempering (quenching and tempering)

Application: NM450 wear-resistant steel plate is widely used in mining machinery, coal mining machinery,

environmental protection machinery, construction machinery, etc., and is also commonly used as high-strength

structural steel with yield strength ≥850MPa.
Function: It is mainly to provide protection in the occasions or parts that need wear resistance, so that the life of

the equipment is longer, the maintenance downtime caused by maintenance is reduced, and the capital investment

is correspondingly reduced.

Performance: The yield is more than 950, and the tensile strength is 1180.

NM450 corresponds to foreign standards and grades JFE:NK-EH450/HARDOX450/DILLDUR:450V

Chemical Composition:

Grade Compsition Chemical (Max %)
C Si Mn P S Cr Ni Mo Ti B Als
Range
NM300 0.23 0.7 1.6 0.025 0.015 0.7 0.5 0.4 0.05 0.0005-0.006 0.01
NM360 0.25 0.7 1.6 0.025 0.015 0.8 0.5 0.5 0.05 0.0005-0.006 0.01
NM400 0.3 0.7 1.6 0.025 0.01 1 0.7 0.5 0.05 0.0005-0.006 0.01
NM450 0.35 0.7 1.7 0.025 0.01 1.1 0.8 0.55 0.05 0.0005-0.006 0.01
NM500 0.38 0.7 1.7 0.02 0.01 1.2 1 0.65 0.05 0.0005-0.006 0.01
NM550 0.38 0.7 1.7 0.02 0.01 1.2 1 0.7 0.05 0.0005-0.006 0.01
NM600 0.45 0.7 1.9 0.02 0.01 1.5 1 0.8 0.05 0.0005-0.006 0.01

Mechanical Properties:

Grade Thickness
mm
Yeild Strength    min Mpa Tensile Strength
min Mpa
Elongation(%) impact
-20°
KV2/J
HBW
NM300 80 ≥800 1000 ≥14 24 270-330
NM360 80 ≥800 1100 ≥12 24 330-390
NM400 80 ≥800 1200 ≥10 24 370-430
NM450 80 ≥800 1250 ≥7 24 420-480
NM500 70 ~ ~ ~ ~ 470
NM550 70 ~ ~ ~ ~ 530
NM600 60 ~ ~ ~ ~ 570

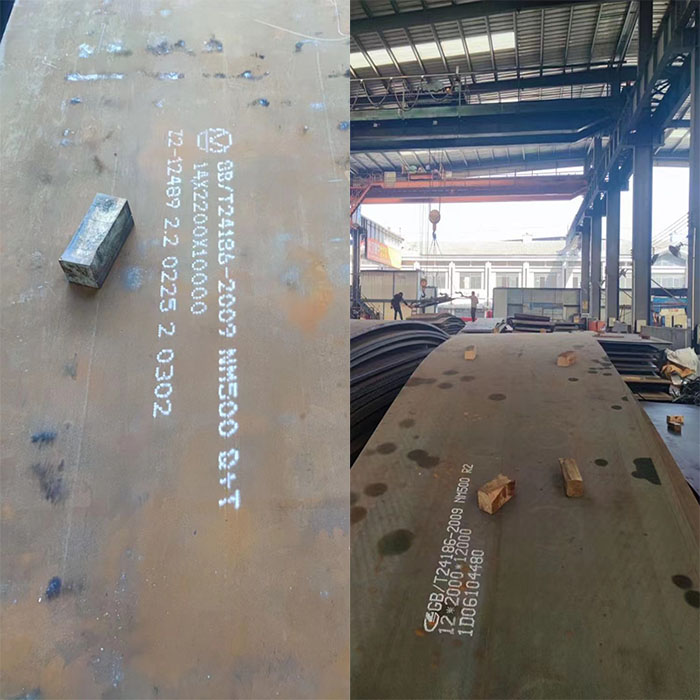

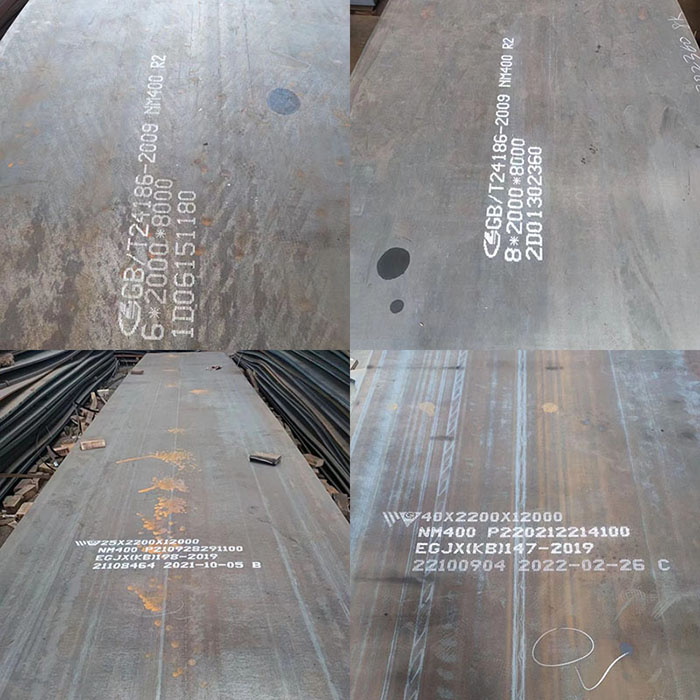

Production pictures:

2 5

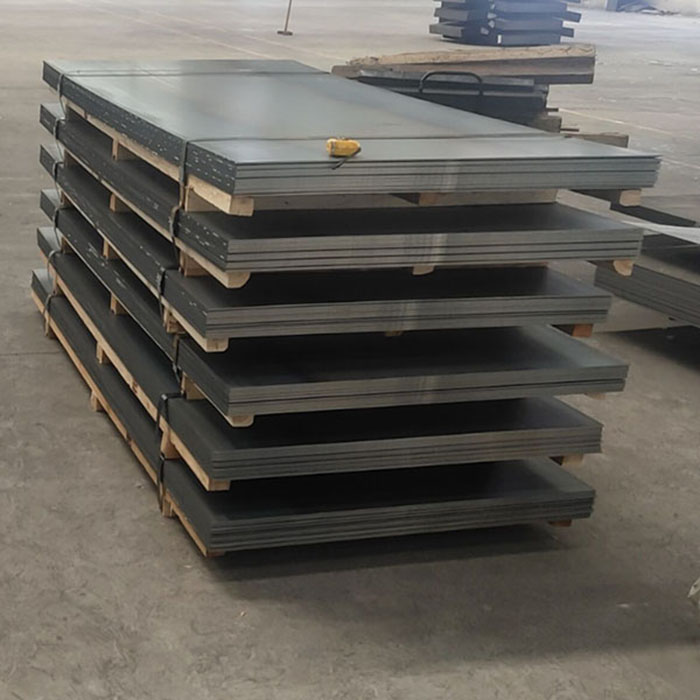

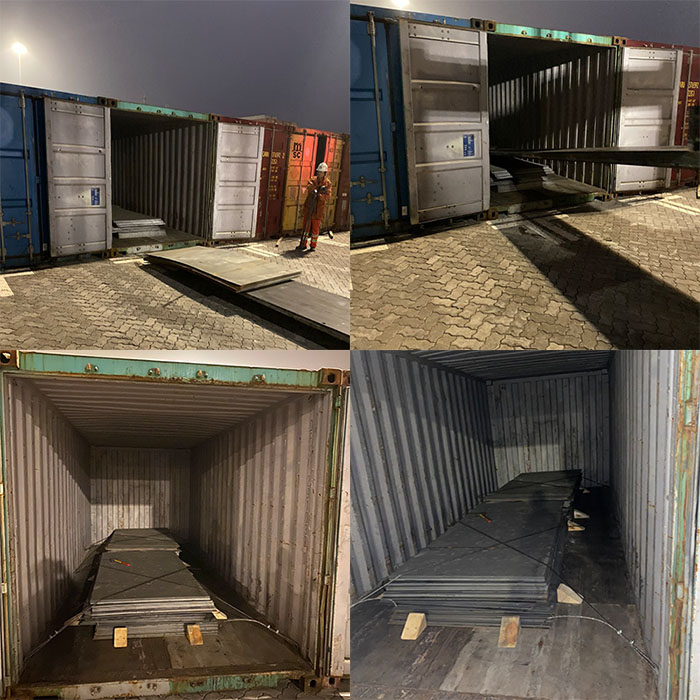

Packing and Loading:

19

未标题-2

Main Application:

1) Construction machinery and equipment: loader, bulldozer, excavator, bucket plate, side edge plate,

bucket bottom plate, blade, and sill plate.

2) Loading and unloading machinery and equipment: unloading mill chain plate, hopper lining plate, grab blade plate,

medium-sized automatic dump truck tipping plate

3) Construction machinery and equipment: tooth plate of cement pusher, lining plate of concrete mixer, lining plate of

mixing floor, lining plate of dust collector

4) Metallurgical machinery and equipment: iron ore sintering conveying elbow, iron ore sintering machine lining,

scraper lining

5) Mining machinery and equipment: ore, stone crusher lining, blades.

6) Other mechanical equipment: sand mill barrel, blades, wear-resistant parts of various port machinery

7) Thermal power equipment: coal mill lining plate, coal hopper, coal distribution pipe, coal distribution distributor

grid, coal unloading equipment lining plate

8) Shot blasting machinery and equipment: shot blasting machine liner
