W18 ASTM H beam Size with A992/A572 Cr50

Short Description:

ASTM Size H beam with grade A992, A572/572m Gr.50


Product Detail

Product Tags

Description:

Standard: ASTM A572/572M
Grade: A572/572M Gr.50
Material: Carbon steel
Size Range: W8*18-W27*217

Chemical Composition:

Grade
C Si Mn P S Nb V
Max Max max Max Max Max Max
Gr42 0.21 0.15-0.4 1.35 0.04 0.05 0.005-0.05 0.01-0.15
Gr50 0.23 0.15-0.4 1.35 0.04 0.05 0.005-0.05 0.01-0.15
Gr55 0.25 0.15-0.4 1.35 0.04 0.05 0.005-0.05 0.01-0.15
Gr60 0.26 0.4 1.35 0.04 0.05 0.005-0.05 0.01-0.15
Gr65 0.26 0.4 1.65 0.04 0.05 0.005-0.05 0.01-0.15

Mechanical Properties:

Grade Delivery Mechanical Properties
 Yield Strength Tensile Strength elongation min%
Min Mpa Min  Mpa <200mm <50mm
Gr42 Hot rolled 290 415 20 24
Gr50 Hot rolled 345 450 18 21
Gr55 Hot rolled 380 485 17 20
Gr60 Hot rolled 415 520 16 18
Gr65 Hot rolled 450 550 15 17

ASTM Size:

Model Size(mm) Sectional
Area
Weight cm4 cm cm3
H B t1 t2 r cm2 Kg/m Ix Iy ix iy Wx Wy
W27×84 678.43 252.98 11.68 16.26 15.5 159.78 125.43 118525.24 4397.28 27.24 5.25 3494.08 347.63
W27×94 683.77 253.75 12.45 18.92 15.5 178.49 140.11 136205.15 5165.2 27.62 5.38 3983.96 407.12
W27×102 688.09 254.38 13.08 21.08 15.5 193.81 152.14 150816.89 5789.1 27.9 5.47 4383.66 455.86
W27×114 693.17 255.78 14.48 23.62 15.5 216.42 169.89 170103.23 6606.89 28.04 5.53 4908.01 516.61
W27×129 701.8 254.25 15.49 27.94 15.5 244.22 191.71 198282.75 7676.61 28.49 5.61 5650.68 603.85
W27×146 695.45 354.71 15.37 24.76 15.5 277.01 217.45 234276.2 18443.17 29.08 8.16 6737.38 1039.9
W27×161 700.79 356.11 16.76 27.43 15.5 305.72 239.99 261335.82 20675.16 29.24 8.22 7458.36 1161.17
W27×178 706.37 357.76 18.41 30.23 15.5 337.28 264.77 290811.78 23104.63 29.36 8.28 8233.93 1291.63
W27×217 722.12 358.52 21.08 38.1 15.5 411.43 322.97 369338.46 29317.56 29.96 8.44 10229.25 1635.47
W24×55 598.68 177.93 10.03 12.83 14 104.82 82.2837 56255.13 1210.26 23.17 3.4 1879.31 136.04
W24×62 603 178.82 10.92 14.99 14 117.86 92.5201 64813.35 1435.66 23.45 3.49 2149.71 160.57
W24×68 602.74 227.71 10.54 14.86 14 129.76 101.862 76360.62 2930.98 24.26 4.75 2533.77 257.43
W24×76 607.57 228.35 11.18 17.27 14 144.6 113.511 87608.55 3435.51 24.61 4.87 2883.91 300.9
W24×84 612.14 229.11 11.94 19.56 14 159.71 125.372 98772.29 3929.7 24.87 4.96 3227.11 343.04
W24×94 617.47 230.25 13.08 22.22 14 178.99 140.5 112562.91 4534.01 25.08 5.03 3645.92 393.83
W24×103 623.06 228.6 13.97 24.89 14 195.57 153.522 125146.63 4970.93 25.3 5.04 4017.15 434.9
W24×104 611.12 323.85 12.7 19.05 14 197.84 155.31 129435.4 10795.3 25.58 7.39 4235.98 666.68
W24×117 616.2 325.12 13.97 21.59 14 222.12 174.364 147400.23 12380.94 25.76 7.47 4784.14 761.62
W24×131 621.79 326.52 15.37 24.38 14 248.97 195.441 67601.79 14166.63 25.95 7.54 5390.93 867.74
W24×146 628.4 327.66 16.51 27.69 14 277.72 218.01 191029.67 16256.05 26.23 7.65 6079.91 992.25
W24×162 635 329.06 17.91 30.99 14 308.23 215597.54 18431.59 18431.59 26.45 7.73 6790.47 1120.27
W21×44 524.76 165.1 8.89 11.43 13 83.81 35126.96 861.11 861.11 20.47 3.21 1338.77 104.31
W21×48 523.75 206.76 8.89 10.92 13 91.23 39957.89 1612.69 1612.69 20.93 4.2 1525.84 156
W21×50 529.08 165.86 9.65 13.59 13 94.97 41015.84 1038.13 1038.13 20.78 3.31 1550.45 125.18
W21×55 528.32 208.79 9.52 13.26 13 104.61 47649.53 2015.82 2015.82 21.34 4.39 1803.81 193.1
W21×57 534.92 166.37 10.29 16.51 13 108.02 84.79 48653.78 1272.71 21.22 3.43 1819.09 153
W21×62 533.15 209.3 10.16 16.51 13 117.83 55393.35 2392.33 2392.33 21.68 4.51 2077.98 228.61
W21×68 536.7 210.06 10.92 17.4 13 129.36 61699.17 2694.31 2694.31 21.84 4.56 2299.2 256.53
W21×73 539.5 210.69 11.56 18.8 13 138.66 66778.54 2937.61 2937.61 21.95 4.6 2475.59 278.85
W21×83 544.32 212.22 13.08 21.21 13 157.12 76291.79 3389.13 3389.13 22.04 4.64 2803.19 319.4
W21×93 549.15 213.87 14.73 23.62 13 176.43 86223.78 3866.25 3866.25 22.11 4.68 3140.27 361.55
W21×101 542.54 312.17 12.7 20.32 13 192.06 150.76 100812.58 10312.08 22.91 7.33 3716.29 660.68
W21×111 546.35 313.44 13.97 22.22 13 210.89 111352.47 11419.01 11419.01 22.98 7.36 4076.2 728.63
W21×122 550.67 314.71 15.24 24.38 13 231.42 123299.72 12683.35 12683.35 23.08 7.4 4478.16 806.04
W21×132 554.48 315.98 16.51 26.29 13 250.45 134256.79 13843.17 13843.17 23.15 7.43 4842.6 876.22
W21×147 560.32 317.75 18.29 29.21 13 278.87 218.913 151201.67 15646.78 23.29 7.49 5396.94 984.84
W21×166 570.99 315.47 19.05 34.54 13 315.01 247.29 177983.27 18106.61 23.77 7.58 6234.18 1147.92
W21×182 577.09 317.5 21.08 37.59 13 345.97 197080.33 20094.71 20094.71 23.87 7.62 6830.17 1265.81
W21×201 584.96 319.4 23.11 41.4 13 382 299.87 221018.1 22539.91 24.05 7.68 7556.67 1411.37
W18×35 449.58 152.4 7.62 10.97 10.5 66.46 52.17 21242.7 638.81 17.88 3.1 945 83.83
W18×40 454.66 152.78 8 13.33 10.5 75.94 59.61 25497.51 794.84 18.32 3.24 1121.61 104.05
W18×46 458.72 153.92 9.14 15.37 10.5 87.39 68.6 29654.46 937.24 18.42 3.27 1292.91 121.78
W18×50 456.95 190.37 9.02 14.48 10.5 94.66 74.31 33304.86 1667.94 18.76 4.2 1457.72 175.23
W18×55 459.99 191.26 9.91 16 10.5 104.55 82.07 37075.11 1870 18.83 4.23 1611.98 195.54
W18×60 463.3 191.9 10.54 17.65 10.5 113.81 89.34 40966.17 2083.85 18.97 4.28 1768.47 217.18
W18×65 466.09 192.79 11.43 19.05 10.5 123.32 96.8 44610.75 2280.92 19.02 4.3 1914.25 236.63
W18×71 469.14 193.93 12.57 20.57 10.5 134.56 105.63 48806.47 2508.73 19.05 4.32 2080.69 258.73
W18×76 462.53 280.29 10.79 17.27 10.5 143.97 113.02 55490.44 6343.93 19.63 6.64 2399.41 452.67
W18×86 467.11 281.69 12.19 19.56 10.5 163.31 128.2 63598.82 7292.83 19.73 6.68 2723.1 517
W18×97 472.19 283.08 13.59 22.1 10.5 184.22 144.61 72715.12 8364.71 19.87 6.74 3079.94 590.97
W18×106 475.74 284.48 14.99 23.88 10.5 200.93 157.73 79622.02 9174.43 19.91 6.76 3347.28 645
W18×119 481.84 286.13 16.64 26.92 10.5 226.23 177.59 91099.89 10529.48 20.07 6.82 3781.35 735.99
W18×130 488.95 283.46 17.02 30.48 10.5 246.58 193.57 102479.73 11589.37 20.39 6.86 4191.83 817.7
W18×143 495.05 284.99 18.54 33.53 10.5 271.41 213.05 114477.7 12958.15 20.54 6.91 4624.93 909.38
W16×26 398.53 139.7 6.35 8.76 11 49.72 39.03 12594.17 399.38 15.92 2.83 632.04 57.18
W16×31 403.35 140.33 6.98 11.18 11 59.02 46.33 15650.9 516.29 16.28 2.96 776.04 73.58
W16×36 402.84 177.42 7.49 10.92 11 68.34 53.65 18706.94 1018.38 16.54 3.86 928.74 114.8
W16×40 406.65 177.67 7.75 12.83 11 76.13 59.77 21617.75 1200.99 16.85 3.97 1063.2 135.19
W16×45 409.7 178.69 8.76 14.35 11 85.71 67.28 24455.69 1367.33 16.89 3.99 1198.83 153.04
W16×50 413 179.58 9.65 16 11 95.28 74.8 27473.6 1547.93 16.98 4.03 1330.43 172.4
W16×57 417.32 180.85 10.92 18.16 11 108.34 85.05 31548.11 1795.15 17.07 4.07 1513.66 198.53
W16×67 414.78 259.97 10.03 16.89 11 127.09 99.76 39771.9 4950 17.69 6.24 1917.73 380.81
W16×77 419.61 261.49 11.56 19.3 11 146.03 114.63 46169.42 5758.41 17.78 6.28 2200.6 440.43
W16×89 425.45 263.27 13.33 22.22 11 168.87 132.56 54128.83 6767.7 17.9 6.33 2544.54 514.12
W16×100 431.04 264.79 14.86 25.02 11 190.15 149.27 61891 7753.38 18.04 6.39 2871.72 585.61
W14×22 349 127 5.84 8.51 10.2 41.9 32.89 8285.95 291.32 14.06 2.64 474.84 45.88
W14×26 353.31 127.63 6.48 10.67 10.2 49.63 38.96 10209.84 370.75 14.34 2.73 577.95 58.1
W14×30 351.54 170.94 6.86 9.78 10.2 57.09 44.82 12095.21 815.34 14.56 3.78 688.14 95.39
W14×34 355.09 171.32 7.24 11.56 10.2 64.52 50.65 14134.41 969.98 14.8 3.88 796.1 113.23
W14×38 358.14 171.96 7.87 13.08 10.2 72.02 56.54 16037.74 1110.28 14.92 3.93 895.61 129.13
W14×43 346.96 203.07 7.75 13.46 15.5 81.53 64 17833.13 1881.47 14.79 4.8 1027.95 185.3
W14×48 350.27 203.96 8.64 15.11 15.5 91.35 71.71 20188.83 2140.35 14.87 4.84 1152.77 209.88
W14×53 353.57 204.72 9.4 16.76 15.5 100.78 79.11 22554.71 2401.12 14.96 4.88 1275.83 234.57
W14×61 352.81 253.87 9.52 16.38 15.5 115.73 90.85 26663.2 4471.65 15.18 6.22 1511.49 352.27
W14×68 356.62 254.89 10.54 18.29 15.5 129.02 101.28 30089.72 5052.28 15.27 6.26 1687.51 396.43
W14×74 359.92 255.78 11.43 19.94 15.5 140.64 110.4 33135.88 5566.75 15.35 6.29 1841.3 435.28
W14×82 363.47 257.3 12.95 21.72 15.5 155.28 121.89 36720.52 6173.65 15.38 6.31 2020.53 479.88
W14×90 356.11 368.81 11.18 18.03 15.5 170.85 134.12 41603.6 15083.52 15.6 9.4 2336.57 817.96
W14×99 359.66 369.95 12.32 19.81 15.5 188.08 147.64 46246.23 16726.04 15.68 9.43 2571.64 904.23
W14×109 363.73 370.97 13.33 21.84 15.5 206.81 162.34 51570.98 18594.65 15.79 9.48 2835.69 1002.5
W14×120 367.79 372.62 14.99 23.88 15.5 227.96 178.94 57297.95 20599.04 15.85 9.51 3115.77 1105.64
W14×132 372.36 374.01 16.38 26.16 15.5 250.19 196.4 63731.94 22827.93 15.96 9.55 3423.1 1220.7
W14×145 375.41 393.7 17.27 27.69 15.5 275.34 216.14 71260.73 28175.15 16.09 10.12 3796.4 1431.3
W14×159 380.49 395.35 18.92 30.23 15.5 301.62 236.77 79161.09 31151.6 16.2 10.16 4160.99 1575.9
W14×176 386.59 397.51 21.08 33.27 15.5 334.07 262.24 89063.93 34862.77 16.33 10.22 4607.69 1754.06
W12×26 310.39 164.85 5.84 9.65 7.4 49.3 38.7 8495.6 721.2 13.13 3.82 547.42 87.5
W12×30 313.44 165.61 6.6 11.18 7.4 56.71 44.52 9913.22 846.84 13.22 3.86 632.55 102.27
W12×35 317.5 166.62 7.62 13.21 7.4 66.67 52.33 11858.72 1019.58 13.34 3.91 747.01 122.38
W12×40 303.28 203.33 7.49 13.08 15.3 75.97 59.63 12902.67 1834.8 13.03 4.91 850.89 180.48
W12×45 306.32 204.34 8.51 14.6 15.3 85.28 66.94 14585.44 2079.94 13.08 4.94 952.29 203.55
W12×50 309.63 205.23 9.4 16.26 15.3 94.78 74.4 16405.31 2345.45 13.16 4.97 1059.69 228.57
W12×53 306.32 253.87 8.76 14.6 15.3 100.45 78.85 17711.06 3985.84 13.28 6.3 1156.36 314
W12×58 309.63 254.25 9.14 16.26 15.3 110.01 86.36 19793.08 4456.35 13.41 6.36 1278.52 350.54
W12×65 307.85 304.8 9.91 15.37 15.3 123.14 96.66 22176.33 7256.23 13.42 7.68 1440.73 476.13
W12×72 311.45 305.82 10.92 17.02 15.3 136.36 107.04 24841.59 8116.94 13.5 7.72 1596.76 530.84
W12×79 314.45 306.83 11.94 18.67 15.3 149.66 117.48 27574.96 8994.04 13.57 7.75 1753.84 586.25
W12×87 318.26 307.97 13.08 20.57 15.3 164.98 129.51 30807.02 10023.78 13.66 7.79 1935.95 650.95
W12×96 322.83 308.86 13.97 22.86 15.3 181.93 142.82 34673.34 11234.68 13.81 7.86 2148.06 727.48
W12×106 327.41 310.39 15.49 25.15 15.3 201.04 157.82 38850.77 12543.6 13.9 7.9 2373.25 808.25
W12×120 333.25 312.93 18.03 28.07 15.3 28.015.3227.64 178.7 44580.71 14351.16 13.99 7.94 2675.53 917.22
W10×2 258.32 146.05 6.1 9.14 7.7 41.85 32.85 4921.46 475.36 10.84 3.37 381.04 65.1
W10×26 262.38 146.56 6.6 11.18 7.7 49.12 38.56 6003.75 587.07 11.06 3.46 457.63 80.11
W10×30 265.94 147.57 7.62 12.95 7.7 57.03 44.77 7072.17 694.93 11.14 3.49 531.87 94.18
W10×33 247.14 202.18 7.37 11.05 12 62.49 49.06 7079.31 1523.3 10.64 4.94 572.89 150.68
W10×39 251.97 202.82 8 13.46 12 73.85 57.97 8683.17 1873.48 10.84 5.04 689.23 184.74
W10×45 256.54 203.71 8.89 15.75 12 85.4 67.04 10306.91 2220.71 10.99 5.1 803.53 218.03
W10×49 253.49 254 8.64 14.22 12 92.93 72.95 11323.37 3886.7 11.04 6.47 893.39 306.04
W10×54 256.29 254.76 9.4 15.62 12 101.98 80.05 12582.94 4307.18 11.11 6.5 981.95 338.13
W10×60 259.59 256.03 10.64 17.27 12 113.69 89.24 14167.29 4834.55 11.16 6.52 1091.52 377.65
W10×68 264.16 257.3 11.94 19.56 12 128.75 101.07 16369.32 5556.86 11.28 6.57 1239.35 431.93
W10×77 269.24 258.83 13.46 22.1 12 145.92 114.55 18941.56 6391.68 11.39 6.62 1407.04 493.9
W10×88 275.34 260.73 15.37 25.15 12 166.94 131.05 22197.54 7436.6 11.53 6.67 1612.4 570.44
W10×00 281.94 262.64 17.27 28.45 12 189.53 148.78 25895.58 8600.72 11.69 6.74 1836.96 654.95
W10×112 288.54 264.54 19.18 31.75 12 212.38 166.71 29805.11 9811.66 11.85 6.8 2065.9 741.79
W8×18 206.76 133.35 5.84 8.38 7.5 33.94 26.64 2576.52 331.69 8.71 3.13 249.23 49.75
W8×21 210.31 133.86 6.35 10.16 7.5 39.75 31.2 3131.44 406.67 8.88 3.2 297.79 60.76
W8×24 201.42 164.97 6.22 10.16 10.3 45.7 35.88 3447.6 760.96 8.69 4.08 342.33 92.25
W8×28 204.72 165.99 7.24 11.81 10.3 53.23 41.79 4081.87 901.2 8.76 4.11 398.77 108.59
W8×31 203.2 203.07 7.24 11.05 10.3 58.9 46.23 4576.03 1543.08 8.81 5.12 450.4 151.97
W8×35 206.25 203.71 7.87 12.57 10.3 66.39 52.12 5271.02 1772.51 8.91 5.17 511.13 174.02
W8×40 209.55 204.98 9.14 14.22 10.3 75.78 59.49 6095.25 2043.32 8.97 5.19 581.75 199.37
W8×48 215.9 205.99 10.16 17.4 10.3 90.99 71.43 7653.07 2536.87 9.17 5.28 708.95 246.31
W8×58 222.25 208.79 12.95 20.57 10.3 110.28 86.57 9478.26 3124.95 9.27 5.32 852.94 299.34
W8×67 228.6 210.31 14.48 23.75 10.3 127.02 99.71 11314.4 3687.46 9.44 5.39 989.89 350.67

St0ck Sizes:

W8*15

W18 series

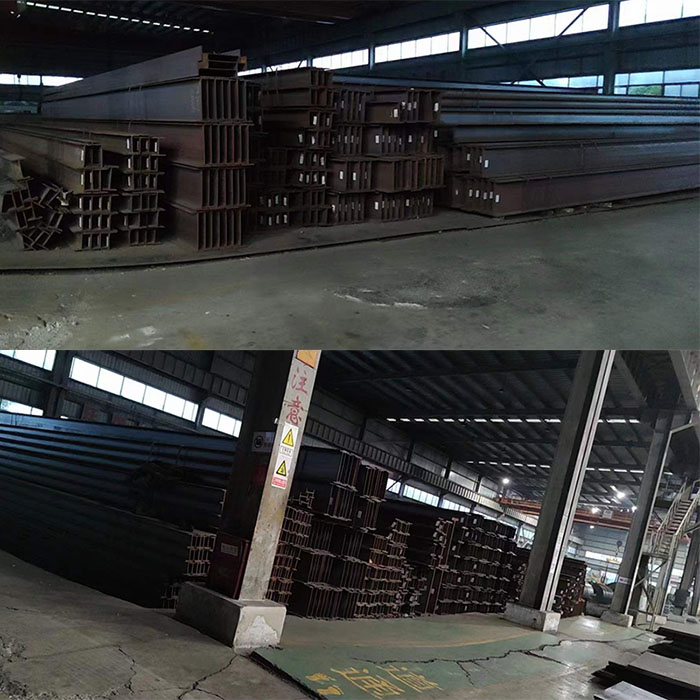

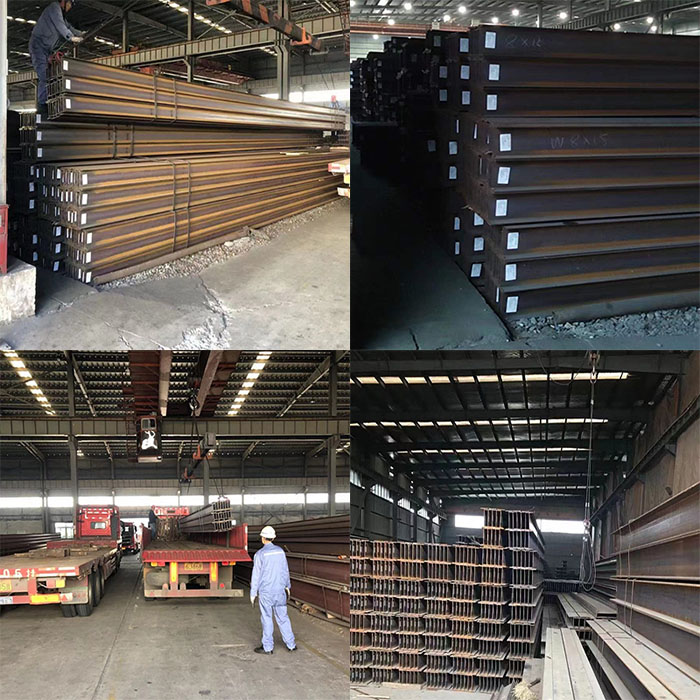

Stcok Picture:

未标题-1 未标题-2

Application:

The scope of application of H-shaped steel:

1 beam and column components in the steel structure of industrial and civil buildings;

2 steel structure load-bearing supports for industrial structures;

3 steel piles and supporting structures for underground engineering;

4 petrochemical and electric power industrial equipment Structure;

5 large-span steel bridge components;

6 ship and machinery manufacturing frame structures;

7 girder supports for trains, automobiles, and tractors;

8 port conveyor belts and highway baffle supports.

The technical rationality of the application of rolled H-section steel:

The use of H-section steel in industrial and civil buildings not only saves labor and costs compared with commonly used

I-beams, but also reduces the amount of steel used. For example, the steel consumption of hot-rolled I-beam steel structure

used in the factory building can be reduced by 15%-20% compared with that of hot-rolled wide-flange H-beam steel.

3. Laiwu Steel’s H-beam R&D direction: Laiwu Steel actively develops and develops fire-resistant, weather-resistant,

and earthquake-resistant H-beams for construction, international advanced standard H-beams, high-strength

controlled-rolling and controlled-cooling H-beams, and other varieties; develops light-weight thin-walled, unequal

Special-shaped H-shaped steels such as width and unequal thickness; develop weather-resistant H-shaped steels for

railway vehicles, H-shaped steels for mast structures of power transmission and transformation towers, and

H-shaped steels for offshore oil platforms. Comprehensively upgrade the product grade of existing H-beams.

Advantage:

Raw material is from Top manufacture which promise the high quality.

Accurate technology confirm the exact size tolerance.

Efficient sales team give you proper proposal.

After-sales team offer and support for product guarantee.

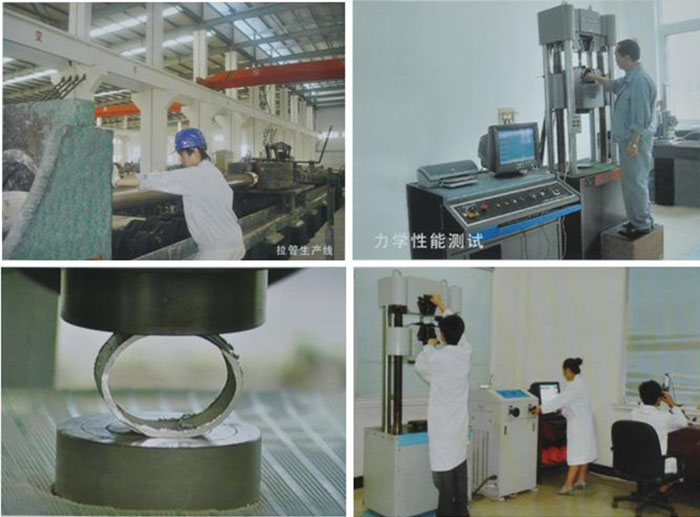

Quality Control:

02

Our Service:

01

RFQ:

Q1: Are you manufacture or Trader

A: We are both manufacture and trader

Q2: Can you offer sample?

A: Sample small one can be offered by free, but buyer should pay the express fee

Q3: Can you offer processing service?

A: We can offer cutting, drilling, painting, coat powder etc…

Q4: What is your advantage on steel?

A: We can customize steel structure accoridng to buy’s drawings or request.

Q5: How about your logistic service?

A: we have professional logistic team who has rich experience on shipping, can offer the steady and quality ship line.




  • Previous:
  • Next:

  • Related Products
