GB/JIS standard Angle steel supplier and wholesaler

Short Description:

Equal and Unequal angle steel and angle bar with 3-5% thickness tolerance.


Product Detail

Product Tags

Production Description:
Standard:GB/T9787-1988  GB/T706-2008
Grade:Q235B
Size Range:25*3mm-200*24mm
Tolerance:3-5%
Length:As request
Equivalent grade: A36, SS400, St37, S235JR

Chemical Compostion:
Grade Chemical Composition (%)
C Si Mn P S
Q195 0.12 0.30 0.50 0.035 0.040
Q235B 0.20 0.35 1.40 0.045 0.045
Mechanical Properties:
Grade Mechanical Property
Yield Strength (N/mm2)/(Mpa) Tensile Strength (N/mm2)/(Mpa) Elongtation (%)
Q195 195 315-430 33
Q235B 235 370-500 26

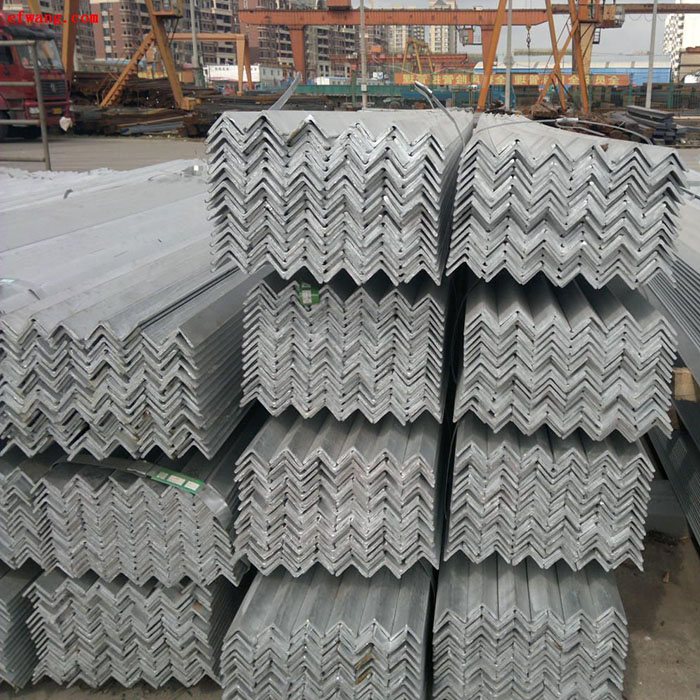

Production Shown:
未标题-1
Package:
1
Application:

Angle steel is mainly used to make frame structures, such as towers for high-voltage power transmission, frames on both sides of the main girder of steel structure bridges, columns and booms of tower cranes on construction sites, columns and beams in workshops, etc. Small places such as festivals A shelf in the shape of a flowerpot is placed on the roadside, a shelf with an air conditioner and solar energy is hung under the window, etc.
The manufacturing process of angle steel is relatively simple. Generally, large steel companies do not produce this thing. The production process can be divided into two types: hot rolling and cold bending. Hot rolling is used for large-sized angle steel, and cold bending is generally relatively small. The standard process is to use a steel billet (such as a square billet) to be gradually rolled into a ∨ shape through a dedicated section steel rolling mill for multiple passes. It is formed by direct rolling (bending) of sheet or strip steel. There is no transition arc on the inner side of the corner, and because it is formed by bending, the internal stress at the corner is large, and the mechanical properties are poor. The most important point is that the material is not guaranteed. It may even be “ground bar steel”. Such angle steel cannot be bent or welded. At most, long and short holes can be drilled.

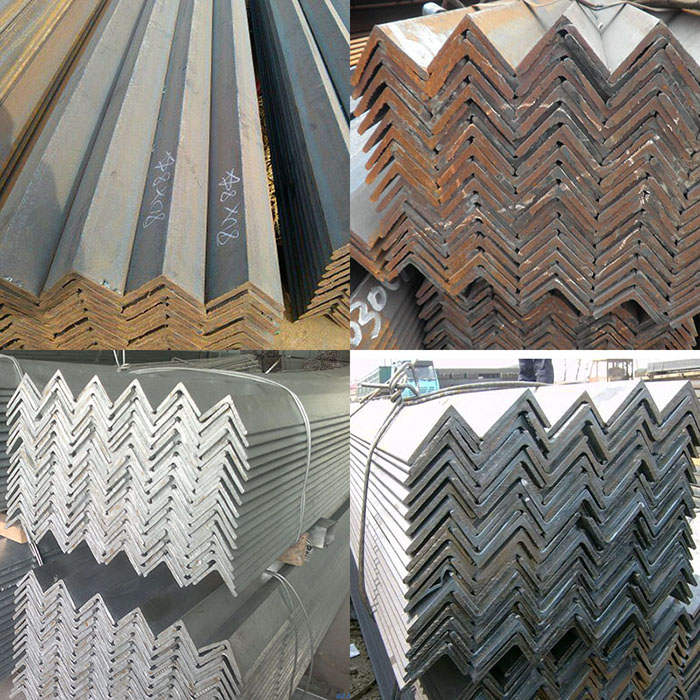

Related production:

未标题-2 未标题-1 未标题-1 未标题-2

Quality Control:

02

Our Service:

01

RFQ:

Q1: Are you manufacture or Trader

A: We are both manufacture and trader

Q2: Can you offer sample?

A: Sample small one can be offered by free, but buyer should pay the express fee

Q3: Can you offer processing service?

A: We can offer cutting, drilling, painting, coat powder etc…

Q4: What is your advantage on steel?

A: We can customize steel structure accoridng to buy’s drawings or request.

Q5: How about your logistic service?

A: we have professional logistic team who has rich experience on shipping, can offer the steady and quality ship line.
