SA 335 P11/P91 seamless alloy steel pipe
Production Description:
Standard：ASTM A335
Grade：SA335 P5、SA335 P11、SA335 P12、SA335P22、SA335 P91、SA335 P92
Lead Condition：Hot Rolling
Size Range：OD 219MM-1066MM ,Thickness 6MM-120MM
Tolerance：According to ASTM A335
Length：As request
Chemical Composition:
| Standard | Grade | Chemical Compostion（％） | |||||||||||||
| C | Si | Mn | P | S | Cr | Mo | Cu | Ni | V | Al | W | Nb | N | ||
| ASME SA335 | SA335 P11 | 0.05～0.15 | 0.50～1.0 | 0.30～0.60 | ≤0.030 | ≤0.030 | 1.00～1.50 | 0.50～1.00 | |||||||
| SA335 P12 | 0.05～0.15 | ≤0.50 | 0.30～0.61 | ≤0.030 | ≤0.030 | 0.80～1.25 | 0.44～0.65 | ||||||||
| SA335 P22 | 0.05～0.15 | ≤0.50 | 0.30～0.60 | ≤0.030 | ≤0.030 | 1.90～2.60 | 0.87～1.13 | ||||||||
| SA335 P5 | ≤0.15 | ≤0.50 | 0.30～0.60 | ≤0.030 | ≤0.030 | 4.00/6.00 | 0.45/0.65 | ||||||||
| SA335 P91 | 0.08～0.12 | 0.20～0.50 | 0.30～0.60 | ≤0.020 | ≤0.010 | 8.00～9.50 | 0.85～1.05 | ≤0.40 | 0.18～0.25 | ≤0.015 | 0.06～ 0.10 | 0.03～ 0.07 | |||
| SA335 P92 | 0.07～0.13 | ≤0.50 | 0.30～0.60 | ≤0.020 | ≤0.010 | 8.50～9.50 | 0.30～0.60 | 0.30～0.60 | ≤0.40 | 0.15～0.25 | ≤0.015 | 1.50～2.00 | 0.04～ 0.09 | 0.03～ 0.07 | |
Mechanical Property:
| Standard | Grade | Mechanical Properties | ||
| Yield Strength | Tensile Strength | Elongation | ||
| ASME SA335 | SA335 P11 | ≥415 | ≥220 | ≥22 |
| SA335 P12 | ≥415 | ≥220 | ≥22 | |
| SA335 P22 | ≥415 | ≥205 | ≥22 | |
| SA335 P5 | ≥415 | ≥205 | ≥22 | |
| SA335 P91 | 585～760 | ≥415 | ≥20 | |
| SA335 P92 | ≥620 | ≥440 | ≥20 | |
Production we offered:
Product name | Material | Standard | Size(mm) | Application |
Low temperature tube | 16MnDG 10MnDG 09DG 09Mn2VDG 06Ni3MoDG ASTM A333 | GB/T18984-2003 ASTM A333 | OD:8-1240*WT:1-200 | Apply to - 45 ℃ ~ 195 ℃ low temperature pressure vessel and low temperature heat exchanger pipe |
High-pressure boiler tube | 20G ASTMA106B ASTMA210A ST45.8-III | GB5310-1995 ASTM SA106 ASTM SA210 DIN17175-79 | OD:8-1240*WT:1-200 | Suitable for manufacturing high pressure boiler tube, header, steam pipe, etc |
Petroleum cracking tube | 10 20 | GB9948-2006 | OD: 8-630*WT:1-60 | Used in oil refinery furnace tube, heat exchanger tube |
Low medium pressure boiler tube | 10# 20# 16Mn,Q345 | GB3087-2008 | OD:8-1240*WT:1-200 | Suitable for manufacturing various structure of low and medium pressure boiler and locomotive boiler |
General structure of the tube | 10#,20#,45#,27SiMn ASTM A53A,B 16Mn,Q345 | GB/T8162-2008 GB/T17396-1998 ASTM A53 | OD:8-1240*WT:1-200 | Apply to the general structure, engineering support, mechanical processing, etc |
Oil casing | J55,K55,N80,L80 C90,C95,P110 | API SPEC 5CT ISO11960 | OD:60-508*WT:4.24-16.13 | Used for extraction of oil or gas in oil Wells casing, used in oil and gas well sidewall |

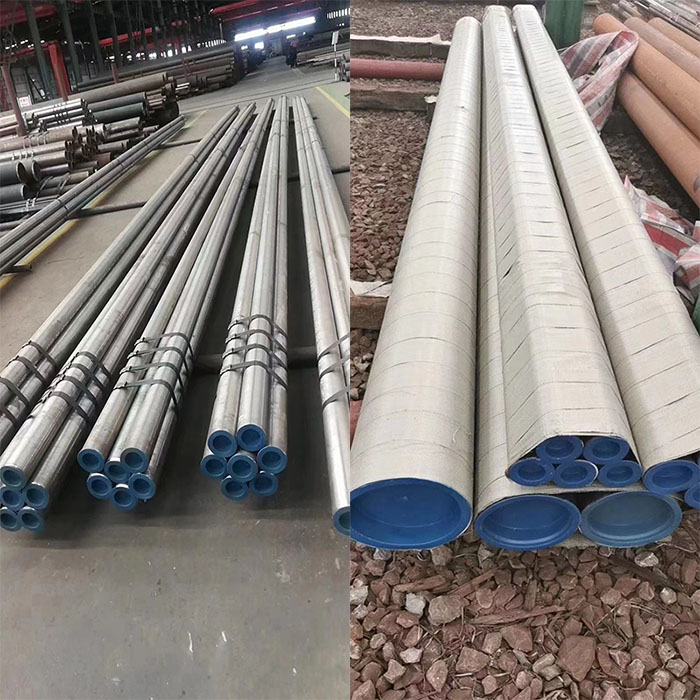

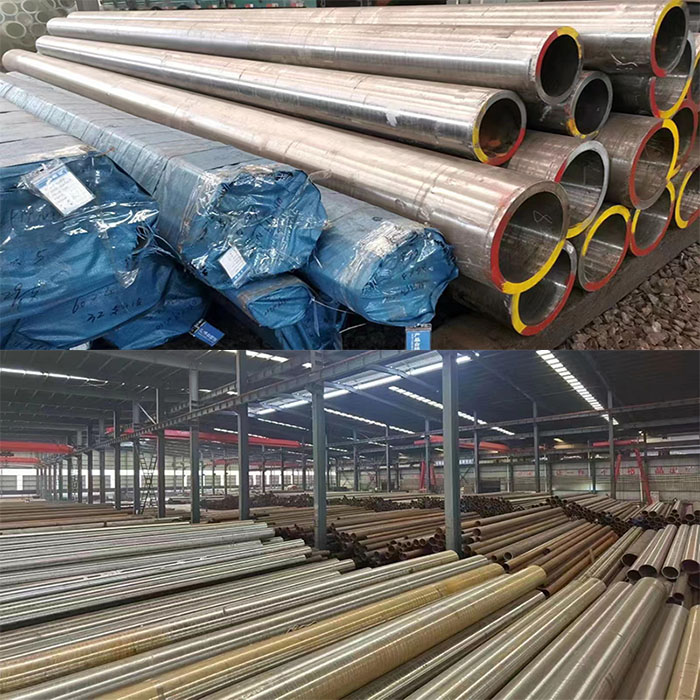

Production Show:

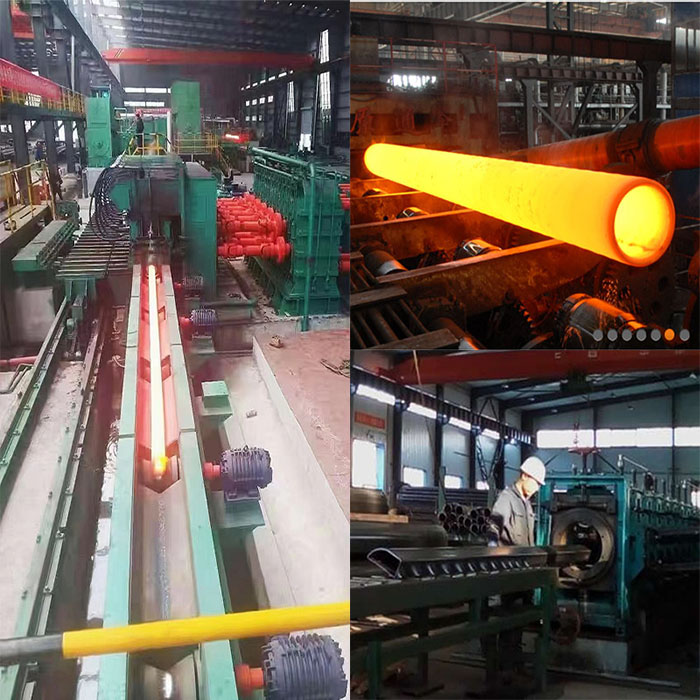

Production Line Shown:
Our Service：
RFQ:
Q1: Are you manufacture or Trader
A: We are both manufacture and trader
Q2: Can you offer sample?
A: Sample small one can be offered by free, but buyer should pay the express fee
Q3: Can you offer processing service?
A: We can offer cutting, drilling, painting, coat powder etc...
Q4: What is your advantage on steel?
A: We can customize steel structure accoridng to buy's drawings or request.
Q5: How about your logistic service?
A: we have professional logistic team who has rich experience on shipping, can offer the steady and quality ship line.
